Eclipse4G & COMET32

Detecta más de 50 antibióticos de 8 familias distintas en leche permitiendo analizar de 1 a 31 muestras en un único ensayo.

¿Quieres realizar un cribado completo de antibióticos?
¿Quieres automatizar el ensayo de antibióticos en tu laboratorio?



¿CÓMO TE AYUDA?

Eclipse 4G & Comet32 permite realizar un ensayo de cribado de antibióticos de forma automática interpretando los resultados de forma objetiva. Únicamente hay que aplicar una gota de leche en el test Eclipse y Comet32 realizará el ensayo parando automáticamente el test en el momento adecuado guardando los resultados en el dispositivo. Gestiona mejor tu tiempo y el análisis de tus muestras gracias a los cuatro módulos independientes (de 8 test por módulo) de Comet32 que permiten adaptarte a las necesidades de tu laboratorio. El sistema cumple con los límites máximos de residuos establecidos en leche por la Unión Europea.

MATRIZ



LECHE CRUDA

APLICACIONES Y USUARIOS



LABORATORIO

PLANTA

PROCEDIMIENTO DE ENSAYO

Procedimiento de ensayo

1. Añadir muestra
100 μl de leche y presiona START

2.Resultado
Leer los resultados en pantalla.
Amarillo: Ensayo ON
Verde: Negativo
Rojo: Positivo

PRINCIPIO DEL TEST

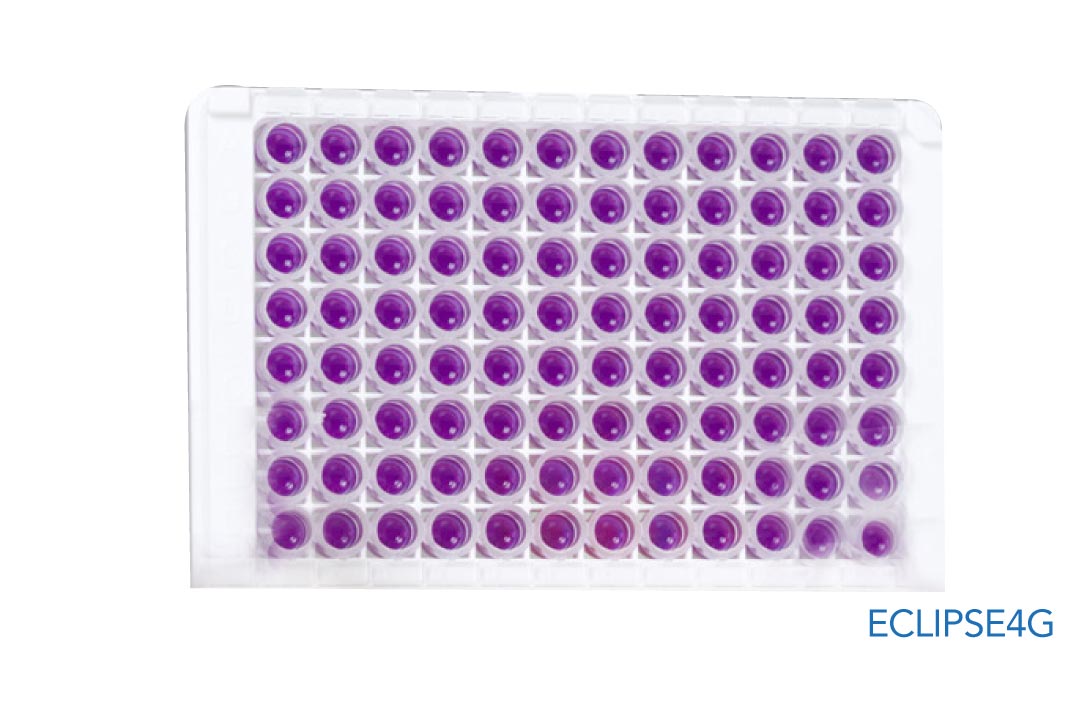

ECLIPSE es un test basado en la inhibición del crecimiento de la bacteria Geobacillus stearothermophilus. En un medio de cultivo específico y condiciones adecuadas, los esporos de esta bacteria germinan y se multiplican acidificando el medio, lo cual provoca un cambio de color del medio de cultivo de azul a amarillo. Si la muestra de leche contiene una concentración de antimicrobianos superior al límite de detección del test, el crecimiento bacteriano se inhibe y por lo tanto no se producirá el viraje de color del medio.



DATOS TÉCNICOS

  • Aplicación: detección simultanea de 50 antibióticos de 8 familias distintas en leche (beta-lactámicos, tetraciclinas, sulfonamidas, macrólidos, aminoglicósidos, lincosamidas, anasamicinas y sulfonas)
  • Tiempo de ensayo: 2 horas 30 minutos
  • Ensayo manual: una etapa de incubación a 63ºC durante aproximadamente 2.5h y lectura visual
  • Resultados: cualitativos (neg/pos) y numéricos mostrados en la pantalla
  • Formato: Placa. Análisis individuales desde 1 hasta 31 muestras por ensayo



Validaciones:

Validación externa por el laboratorio alemán MQD – Institute for Analytics, Hygiene and Product Quality GmbH.



Validación interna: De acuerdo a la Norma ISO 13969:2003.



Legislación:

Reglamento (UE) No 37/2010 de la Comisión de 22 de diciembre de 2009 relativo a las sustancias farmacológicamente activas y su clasificación por lo que se refiere a los límites máximos de residuos en los productos alimenticios de origen animal.

Productos relacionados

Artículos relacionados

Eclipse4G & COMET32

Automatic screening of more than 50 antibiotics in milk, in a single assay.



Do you want to perform a complete screening of antibiotics?
Do you want to automatize your antibiotic testing in your laboratory?



[button size=»small» icon=»fa-phone» target=»_self» hover_type=»default» text_align=»center» text=»CONTACT US» background_color=»#1e73be» border_color=»#1e73be» hover_background_color=»#fc634a» hover_border_color=»#fc634a» link=»#seccion-contacto»]
[button size=»small» icon=»fa-download» target=»_self» hover_type=»default» text_align=»center» text=»TECHNICAL SHEET» hover_background_color=»#fc634a» hover_border_color=»#fc634a» background_color=»#1e73be» border_color=»#1e73be» link=»https://www.zeulab.com/en/landing-eclipse4g-comet32-eng/»]

TEST4ALL: TEST AUTOMÁTICOS CON RESULTADOS EN TIEMPO REAL

HOW DOES IT HELP YOU?

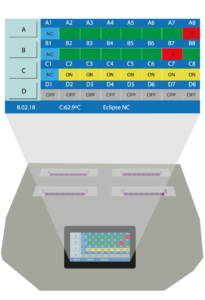

Comet32 performs the Eclipse 4G antibiotic screening assay automatically and interprets the results objectively. Just apply a drop of milk to the Eclipse test and Comet32 will incubate and stop the assay automatically; interpreting and saving the results in the device. Comet32 helps you to standardise the antibiotics assay and to manage samples, using four different sets (1-8 samples), individually or together.

GAEC de L’Estiala. Bretaña, Francia. 110 vacas lecheras

“Nous nous sommes équipé du détecteur d’antibiotiques en Aout 2020. J’utilise le détecteur avec mon lphone por m’assurer de l’absence d’antibiotiques sur les multipares après vêlage mais aussi pour les vaches en fin de traitement. Le coût d’un test revient à moins de 1 euro. La pénalité liée au antibiotiques peut monter jusq’à 500€/1000L à l’échelle de notre élevage. Le détecteur est un outil efficace et facile à utiliser qui nous apporte rigueur et sécurité dans la qualité du lait livré!”

“Nos equipamos con el detector de antibióticos en agosto de 2020. Utilizo el detector con mi iPhone para asegurarme de la ausencia de antibióticos en las vacas después del parto y también en las vacas al final de su tratamiento. El coste de un test es inferior a 1 euro. La penalización por los antibióticos puede llegar a ser de 500€/1000L en nuestra granja. ¡El detector es una herramienta eficaz y fácil de usar que nos aporta rigor y seguridad en la calidad de la leche entregada!”

Andrew Smith, Herb Manager, Pearn Wyatt & Son, Norfolk, UK

«Encuentro Comet muy útil. Normalmente no hago test porque lleva mucho tiempo realizarlos, pero como los resultados llegan a mi correo electrónico, no tengo que esperar junto al dispositivo a que termine. También ha detectado los positivos que normalmente habría puesto de nuevo en el tanque.»

MATRIX
[icon_text box_type=»normal» icon_type=»normal» icon_position=»top» icon_size=»fa-2x» use_custom_icon_size=»no» title_tag=»h6″ separator=»no» title=»RAW MILK» image=»2470″]
APPLICATIONS AND USERS
[icon_text box_type=»normal» icon_type=»normal» icon_position=»top» icon_size=»fa-2x» use_custom_icon_size=»no» title_tag=»h6″ separator=»no» title=»LABORATORY» image=»4574″]
[icon_text box_type=»normal» icon_type=»normal» icon_position=»top» icon_size=»fa-2x» use_custom_icon_size=»no» title_tag=»h6″ separator=»no» title=»PROCESSING PLANT» image=»2474″]

ASSAY PROCEDURE

[qode_elements_holder number_of_columns=»two_columns» columns_proportion=»25_75″][qode_elements_holder_item advanced_animations=»no» item_padding=»0px 15px 0px 0px» item_padding_1280_1440=»0px 15px 0px 0px» item_padding_1024_1280=»0px 15px 0px 0px» item_padding_768_1024=»0px 15px 0px 0px» item_padding_600_768=»0px 0px 15px 0px» item_padding_480_600=»0px 0px 15px 0px» item_padding_480=»0px 0px 15px 0px»][qode_video_box video_link=»https://youtu.be/r_I6vRnRSJQ» video_image=»10010″]

Eclipse4g & Comet32

[/qode_elements_holder_item][qode_elements_holder_item advanced_animations=»no» background_color=»#f5f6f6″ item_padding=»10px 20px 10px 15px» item_padding_1280_1440=»0px 0px 0px 0px» item_padding_1024_1280=»0px 0px 0px 0px» item_padding_768_1024=»0px 0px 0px 0px»]

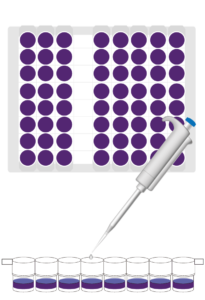

1. Add sample

100 μl of milk & Press START

2.Result

Read the results on the screen.

Yellow: assay ON
Green: Negative Result
Red: Positive Result

[/qode_elements_holder_item][/qode_elements_holder]

TEST PRINCIPLE

ECLIPSE test is based on the growth inhibition of the Geobacillus stearothermophilus bacterium. In a specific culture medium and under suitable conditions, the spores of this bacterium germinate and multiply, acidifying the medium, producing a colour change in the culture medium from blue to yellow. If the milk sample contains an antimicrobial concentration higher than the test detection limit, the bacterial growth is inhibited and therefore the colour change of the medium will not occur. When Eclipse test is used in combination with Comet32, the colour changed is monitored in real time to measure the inhibition growth.

TECHNICAL DATA

  • Scope: simultaneous detection of 50 antibiotics from 8 different families in milk (beta-lactams, tetracyclines, sulfonamides, macrolides, aminoglycosides, lincosamides, anasamycins and sulfones).
  • Assay-time: 2 h 30 minutes.
  • Manual assay: one-stage incubation at 63°C for approximately 2.5h and visual reading.
  • Results: Qualitative (neg/pos) and numerical results displayed on the screen.
  • Format: Plate: Individual assays from 1 to 31 samples per assay.



Validations:

External validation by the German laboratory MQD – Institute for Analytics, Hygiene and Product Quality GmbH.



Internal validation: According to ISO 13 969:2003.



Legislation:

Commission Regulation (EU) No 37/2010 of 22 December 2009 on pharmacologically active substances and their classification regarding maximum residue limits in foodstuffs of animal origin.
